125mm Blue Rubber Industrial Castors - 180KG Rated

Regular price $61.50 NZD
Tax included. Shipping calculated at checkout.
  • Wheel Material: Blue Hi Resilience Rubber wheel with roller bearing
  • Wheel Diameter: 125mm
  • Tread Width: 32mm
  • Castor Height: 155mm
  • Weight Rating: 180KG
  • Swept radius swivel plate and bolt hole: 106mm
  • Swept radius swivel plate and bolt hole total brake: 122mm

These 125mm (5 inch) industrial Blue Hi Resilience Rubber wheel castors are the best solution for equipment trolleys that take loads of up to 720kg and roll of rough surfaces. The blue rubber castor wheel provides good protection for sensitive loads and is non-marking for non-slip tiled floors, drain grates, carpet strips, etc. The roller bearing helps spread the load of impacts when going through doorways and over rough ground.

The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments. These feature two complete rows of balls in the headrace to ensure ease of smooth swiveling and silence during the life of the trolley.

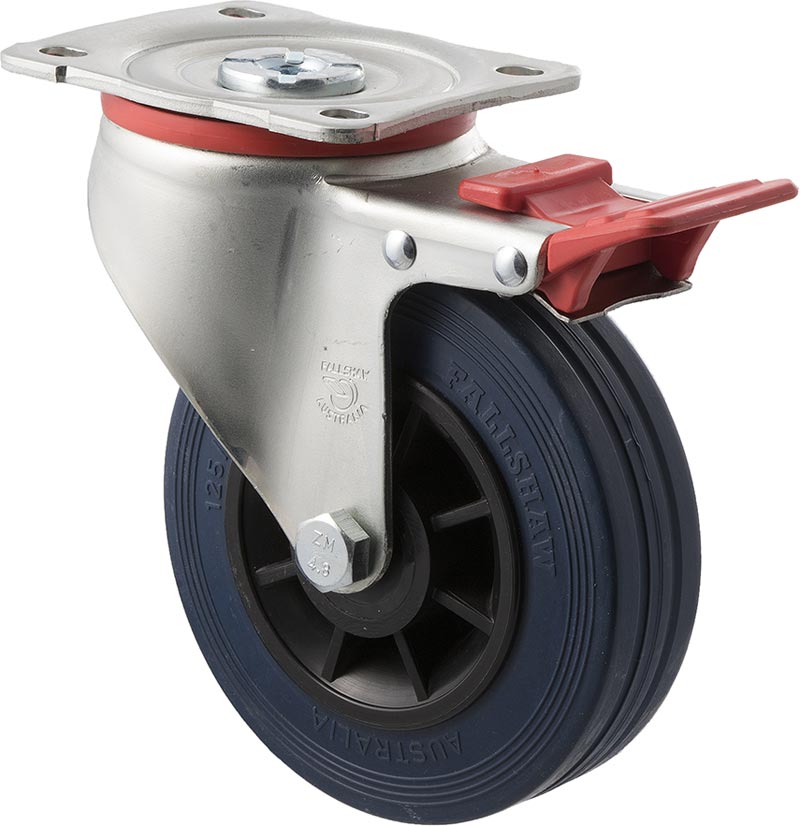

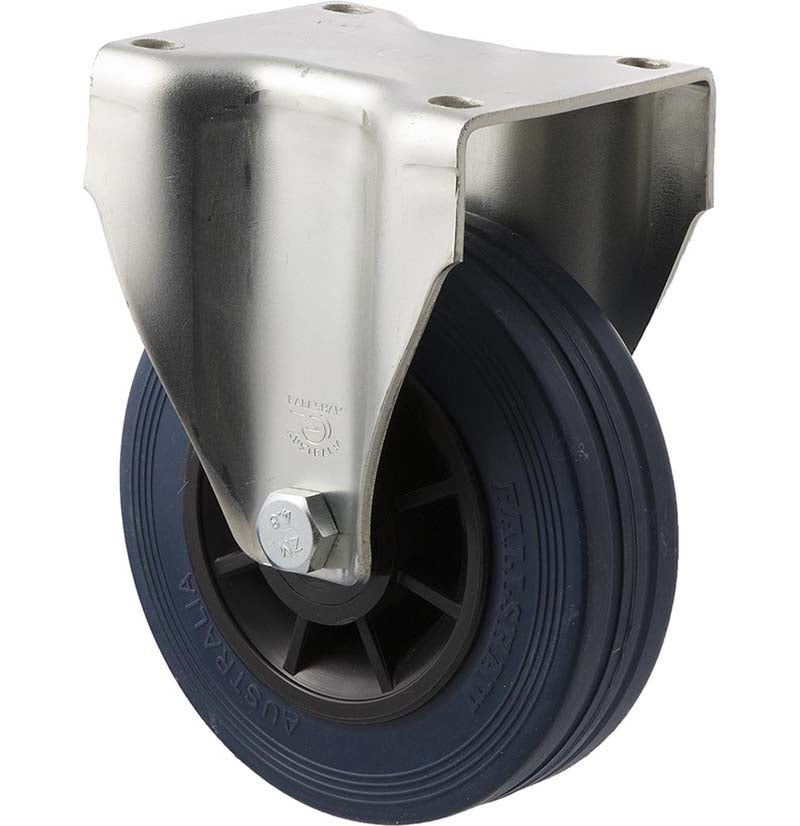

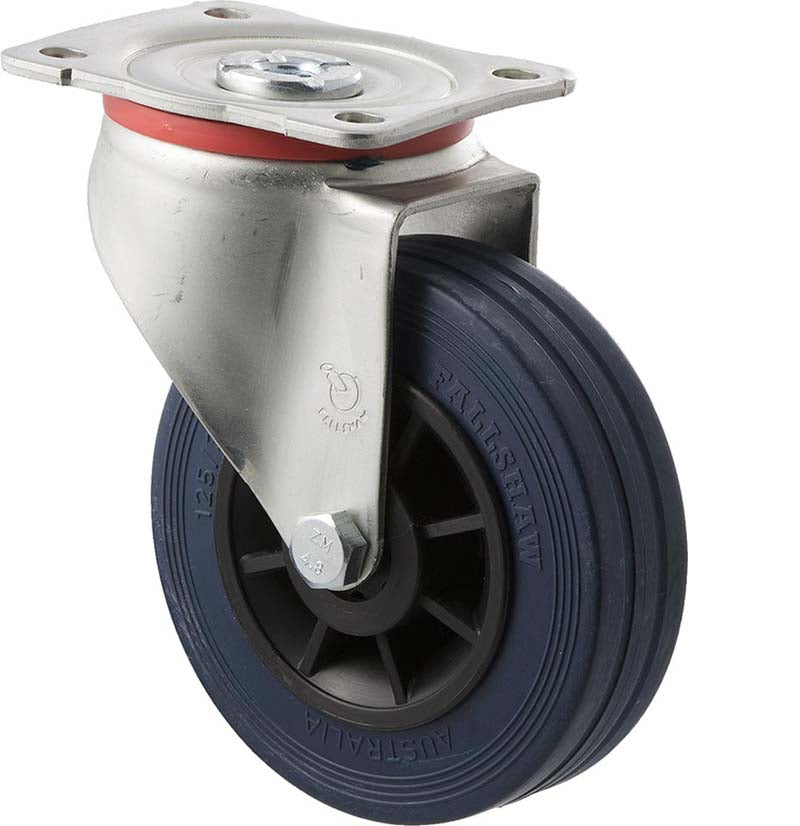

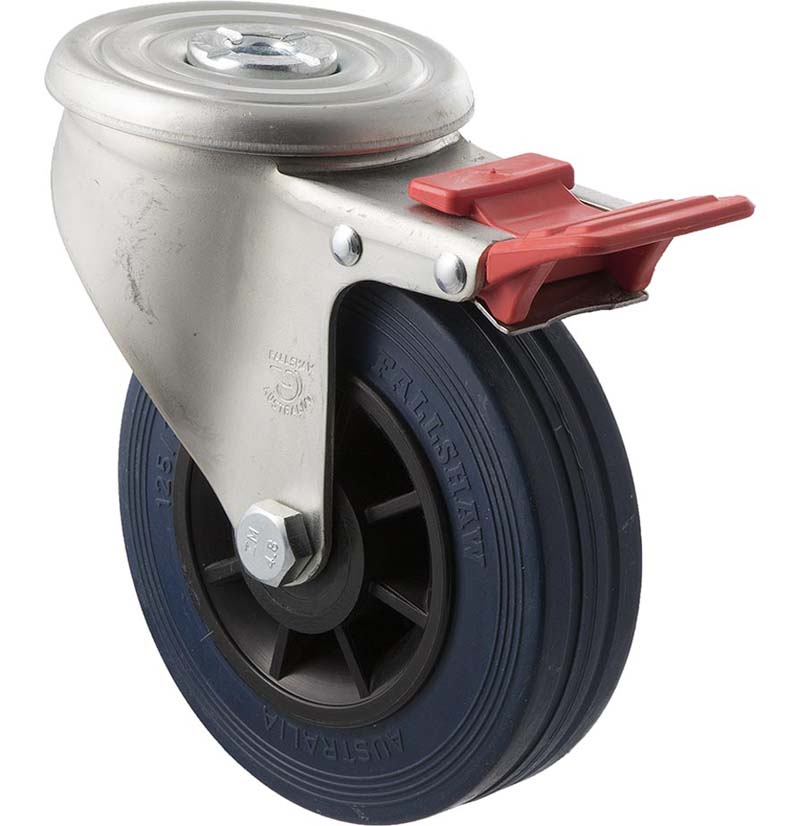

Available in swivel and fixed plate mounting styles or 12.7mm bolt hole. You can also choose the total brake option on the swivel forks to stop the castors turning and rolling when braked.

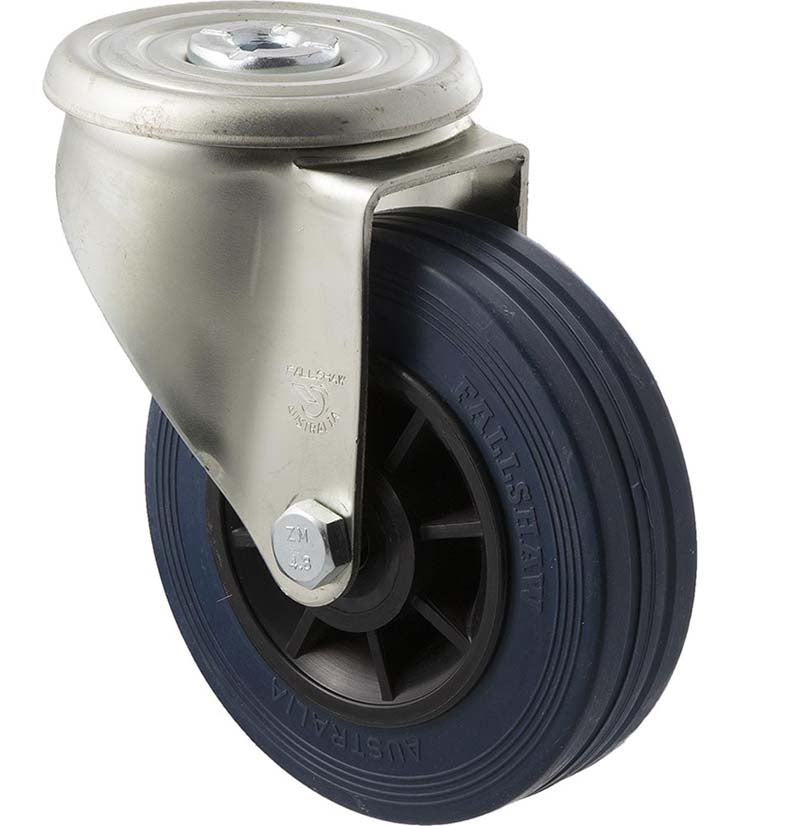

The plate castors can be fastened by bolting the 86x100mm mounting plate using the four 9mm holes with slotted hole centres, but most commonly used at 60x80mm. The bolt hole castors can be mounted using a single M12 bolt through the centre of the mounting hole.

The swept radius of the swivel castors is 106mm and the swept radius for the total brake castors is 122mm. The total height from the floor to the top of these castor units is 155mm and each has a maximum rolling safety load rating of 180kg.

The Hi-Res Blue Rubber wheels are 125mm diameter x 32mm tread width and have a 10mm bore x 45mm hub width and run on needle roller bearing in the centre of the wheel.
