Our 75mm (3 inch) medium-duty Polyurethane (PU) Stainless Steel Castors are an ideal choice for institutional trolleys, stainless steel tables, and other equipment carrying loads up to 400kg (over 4 castors). Designed for use in wet or corrosive environments, these castors deliver smooth, quiet, and reliable mobility.
The wheels are moulded with a rounded profile for effortless turning and floor protection, making them suitable for all floor types including tiles, vinyl, epoxy-coated concrete, and sealed timber. Twin sealed stainless steel precision bearings with thread guards ensure long-lasting, maintenance-free performance.
The castor forks and headrace balls are manufactured from 304 stainless steel, offering excellent corrosion resistance. Each swivel fork features two full rows of balls in the headrace for smooth, silent manoeuvring throughout the service life of the trolley.
Mounting Options
-
Swivel Plate: Full 360° rotation, 71mm turning radius.
-
Swivel Plate with Total Brake: Locks both wheel and swivel, 118mm turning radius.
-

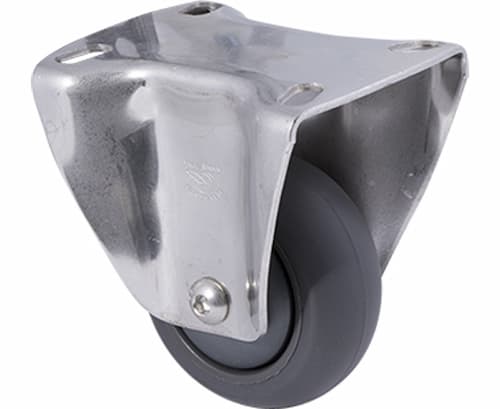

Fixed Plate: Non-swivelling, ideal for straight-line movement.
-
Bolt Hole: Compact design, mounts with a single M12 bolt.
-
Bolt Hole with Total Brake: Locks both wheel and swivel, 118mm turning radius.

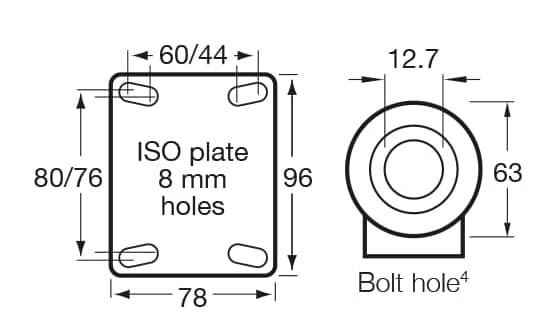

The plate castors feature a 96mm x 78mm mounting plate with four 8mm slotted holes (typically used at 60mm x 80mm centres). Bolt hole versions mount with a single M12 bolt through the centre.
Specifications
-
Wheel Material: Polyurethane (PU) with twin sealed stainless steel precision bearings
-
Wheel Diameter: 75mm
-
Tread Width: 32mm
-
Bore / Hub Width: 8mm bore x 40mm hub width
-
Castor Height: 106mm
-
Weight Rating: 100kg per castor
-
Turning Radius: 71mm (swivel & bolt hole) / 118mm (swivel with brake & bolt hole with brake)
-
Construction: 304 Stainless Steel forks & headrace balls
Upgrade your trolley or equipment with our stainless steel 75mm PU castors for dependable performance, easy manoeuvrability, and long-lasting corrosion resistance in demanding environments.
