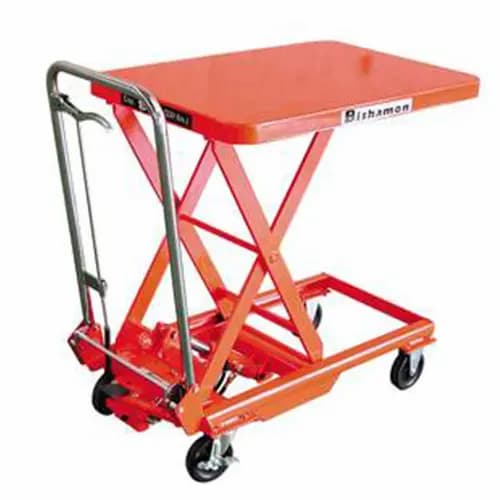

Streamline heavy lifting, die handling, and workstation positioning with the premium Japanese-engineered Bishamon BX15 Mobile Scissor Lift Table (Code: BX15). Constructed from high-grade steel with a durable hydraulic pump system, this portable scissor table effortlessly raises loads up to 150kg to a maximum height of 731mm in just 15 pedal strokes. It is the ideal solution for loading trucks, stocking shelves, handling moulds, and extending machine tool working surfaces across New Zealand workshops.
Key Features & Benefits
-
150kg Load Capacity: Premium Bishamon engineering designed for reliable, day-in-day-out lifting and positioning of materials.
-
High-Quality Steel Construction: Reinforced steel platform and chassis provide outstanding strength, durability, and operational stability.
-
Fast & Efficient Elevation: Smooth foot-pedal hydraulic operation reaches maximum lift height (731mm) in just 15 pumps, minimizing operator exertion.
-
Low Minimum Height: Ultra-low minimum table height of 213mm allows for effortless loading of floor-level items and equipment.
-
Compact & Lightweight Portability: Weighing only 33kg and equipped with 100mm wheels, it maneuvers smoothly around tight workshop aisles and machine stations.
Product Specifications
| SWC Product Code |
BX15 |
| Brand / Series |
Bishamon BX Series |
| Load Capacity |
150kg |
| Table Size (W x D) |
700mm x 450mm |
| Minimum Table Height |
213mm |
| Maximum Table Height |
731mm |
| Overall Dimensions (L x W x H) |
853mm x 450mm x 795mm |
| Strokes to Max Height |
15 Times |
| Wheel Diameter |
100mm |
| Material Construction |
Steel Construction |
| Net Weight |
33kg |
| Applications |
Die & Mould Handling, Workshop Workstation Extension, Shelving & Truck Loading |
