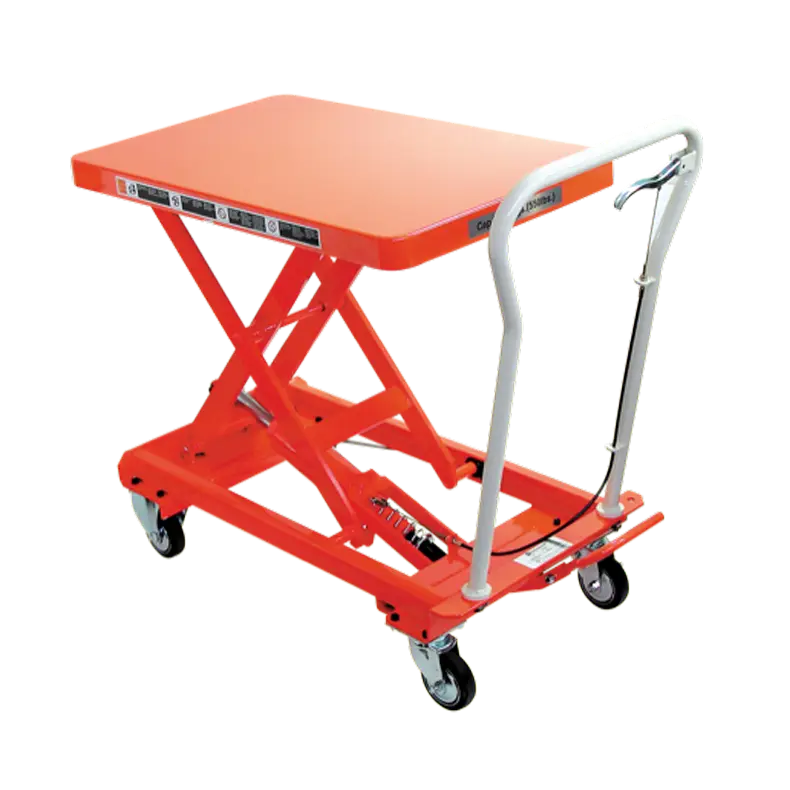

Streamline heavy lifting, die handling, and workstation positioning with the BX30 Hydraulic Scissor Lift Table (Code: BX30). Built with a heavy-duty steel frame and a reliable hydraulic pump system, this portable scissor lift table easily raises loads up to 300kg to a maximum height of 865mm in just 25 pedal strokes. It is an ideal solution for loading and unloading trucks, stocking warehouse shelves, moving moulds, and extending machine tool working surfaces across New Zealand workshops.
Key Features & Benefits
-
300kg Load Capacity: Heavy-duty scissor mechanism designed to safely support and position heavy equipment, dies, and materials.
-
High-Quality Steel Construction: Reinforced steel platform and frame deliver maximum strength, durability, and operational stability.
-
Reliable Hydraulic System: Smooth foot-pedal elevation reaches full working height (865mm) in just 25 pumps, reducing operator strain.
-
Ergonomic Low Clearance: Low minimum table height of 278mm allows for easy loading of floor-level items and heavy tooling.
-
Smooth Portability: Equipped with durable 100mm wheels for effortless maneuvering around workshop floors, machine tools, and loading bays.
Product Specifications
| SWC Product Code |
BX30 |
| Series |
BX Series |
| Load Capacity |
300kg |
| Table Size (W x D) |
813mm x 500mm |
| Minimum Table Height |
278mm |
| Maximum Table Height |
865mm |
| Overall Dimensions (L x W x H) |
1028mm x 500mm x 896mm |
| Strokes to Max Height |
25 Times |
| Wheel Diameter |
100mm |
| Material Construction |
Heavy-Duty Steel |
| Net Weight |
66kg |
| Applications |
Die & Mould Handling, Truck Loading, Workstation Extension, Workshop Lifting |
