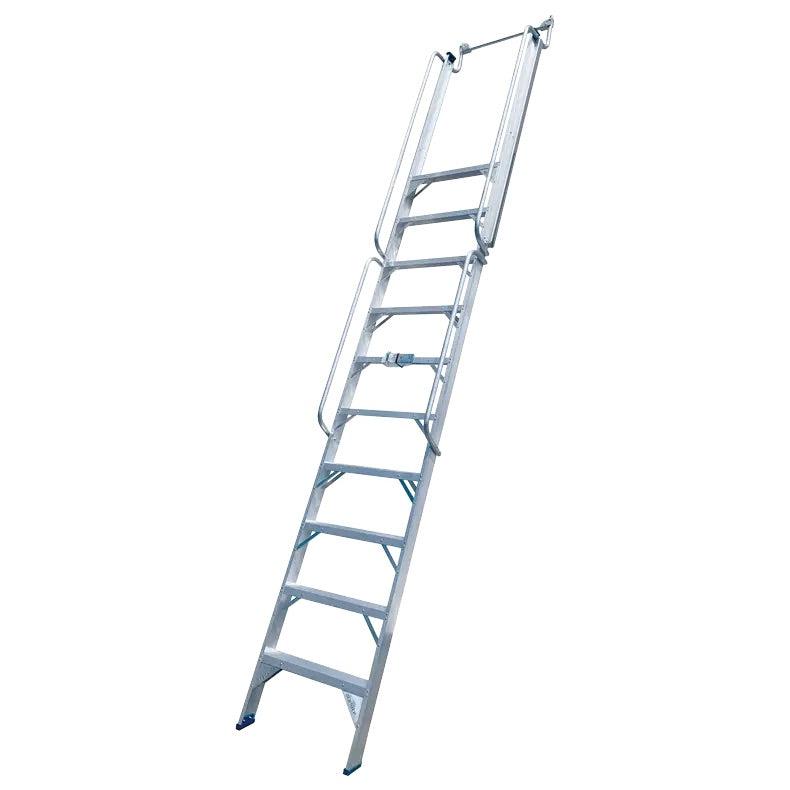

The Mezzanine Access Rex Step Ladder is a New Zealand-made industrial access ladder designed for workplaces requiring frequent access to mezzanine floors, elevated storage areas and other raised levels. With a 200kg load capacity and space-saving design, it provides a practical alternative to a permanent fixed staircase where floor space is limited.
Designed for regular workplace use, the ladder provides a comfortable climbing angle when deployed and can be moved and secured into position as required. When not in use, it folds back against the wall to minimise the space required in aisles and working areas.
The system includes an upper-floor safety gate to help protect the mezzanine opening when the ladder is not in use. The move-and-lock mechanism is designed for frequent operation, making it practical for warehouses, factories, distribution centres and other commercial environments where elevated access is required throughout the day.
Manufactured in New Zealand from high-grade aluminium, REX STEP mezzanine access ladders combine a strong 200kg industrial load rating with a relatively lightweight construction for easier handling. The ladders are designed to exceed AS/NZS 1892.1 safety requirements, with all welds manufactured to AS/NZS 1665.
Features & Benefits
- New Zealand-made industrial mezzanine access ladder
- 200kg industrial load capacity
- High-grade aluminium construction
- Space-saving design folds back against the wall when not in use
- Comfortable climbing angle when deployed
- Move-and-lock mechanism designed for frequent use
- Includes upper-floor safety gate to help protect the mezzanine opening
- Suitable for frequent access to mezzanine floors and elevated storage areas
- Designed to exceed AS/NZS 1892.1 safety requirements
- All welds manufactured to AS/NZS 1665
- Overall width of 600mm
- Suitable for warehouses, factories, distribution centres and commercial environments

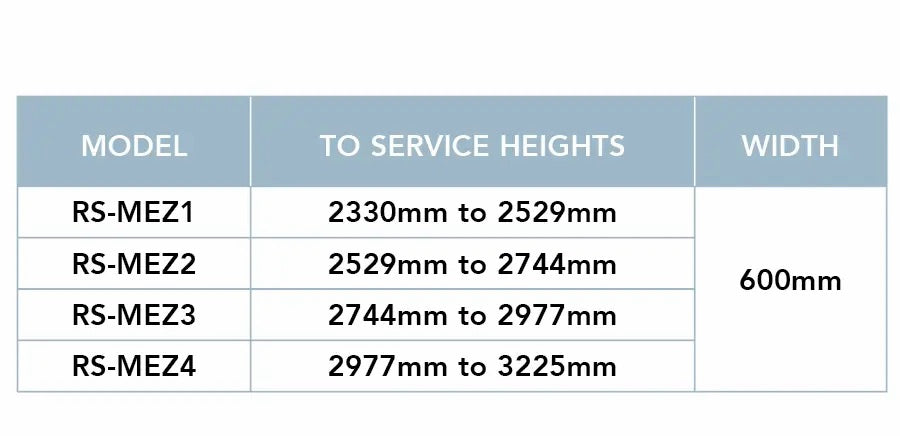

Available Models
- RS-MEZ1 – 9 step – service height within the 2330-2529mm range, pull out distance 1433-1001mm
- RS-MEZ2 – 10 step – service height within the 2529–2744mm range, pull out distance 1548-1091mm
- RS-MEZ3 – 11 step – service height within the 2744–2977mm range, pull out distance 1672-1165mm
- RS-MEZ4 – 12 step – service height within the 2977-3225mm range, pull out distance 1807-1262mm
Specifications
- Product Codes: RS-MEZ1 to RS-MEZ4
- Steps: 9 to 12
- Service Heights: 2330mm to 3225mm
- Overall Width: 600mm
- Load Capacity: 200kg
- Construction: High-grade aluminium
- Made in New Zealand
- Safety Standard: Exceeds AS/NZS 1892.1
- Welding Standard: AS/NZS 1665
Please note: Due to size and nature of this product freight may differ to what is calculated online. Our team will be in touch after purchase to confirm the final freight cost or we can have these ready for collection.
