100mm Nylon Stainless Steel Castors - 150KG Rated

Regular price $87.69 NZD
Tax included. Shipping calculated at checkout.

Ensure reliable, corrosion-resistant performance with our 100mm 304 Stainless Steel Nylon Wheel Castors. Engineered specifically for wash-down zones, food preparation areas, and saltwater environments, these general-duty stainless steel castors carry up to 150kg per unit (600kg total across four castors). Featuring smooth, hard-wearing nylon wheels and double ball-bearing swivel heads, they offer quiet rolling and effortless manoeuvrability across carpet, smooth concrete, and vinyl flooring.

Key Features & Benefits

  • 304 Stainless Steel Construction: Premium grade stainless steel forks deliver exceptional corrosion resistance in wet, chemical, or marine wash-down environments.
  • 150kg Load Capacity per Castor: Rated for up to 150kg per wheel, providing a combined weight rating of up to 600kg on a 4-wheel setup.
  • Dual Row Ball Bearing Swivel Head: Two full rows of ball bearings in the swivel head ensure smooth, quiet 360-degree rotation throughout the castor's service life.
  • Non-Marking Solid Nylon Wheel: Durable 100mm nylon wheel with a 304 stainless steel sleeve centre rolls effortlessly across smooth concrete, lino, tiles, and carpets.

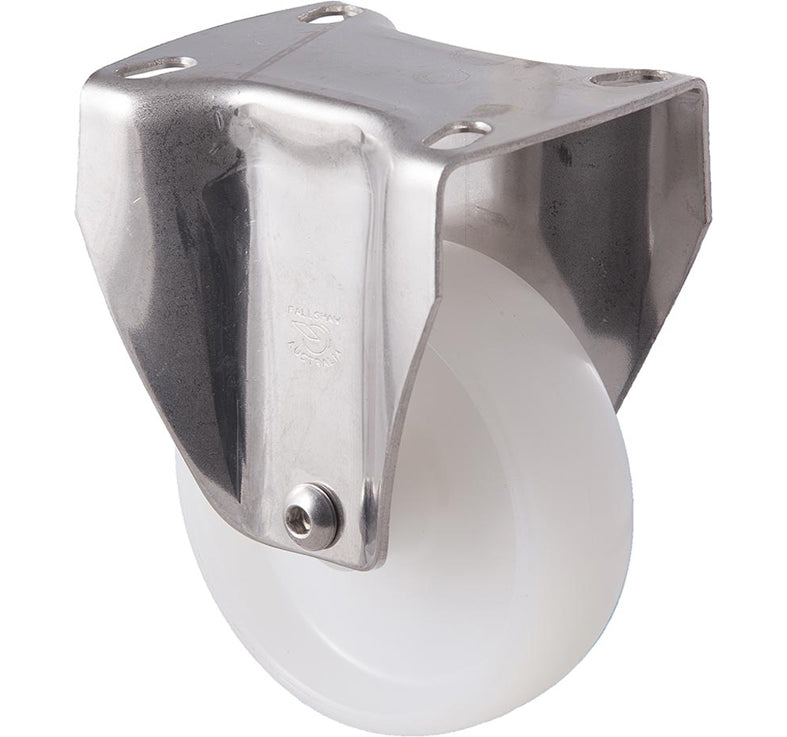

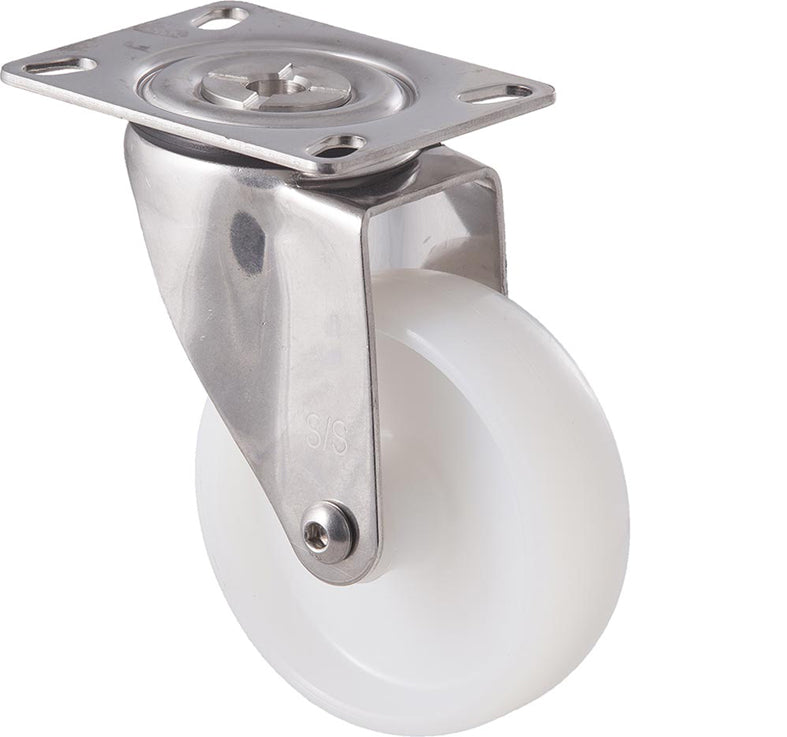

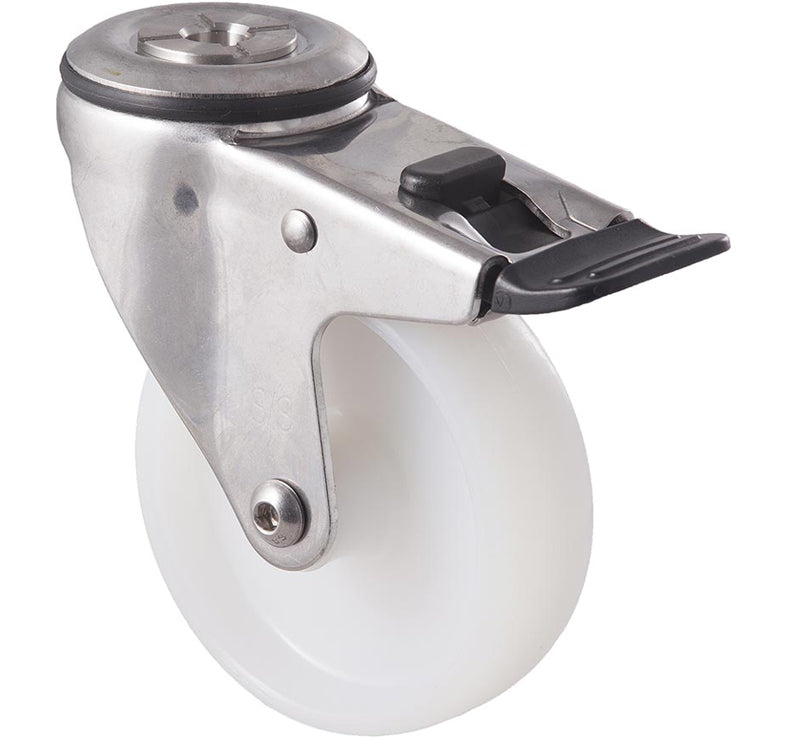

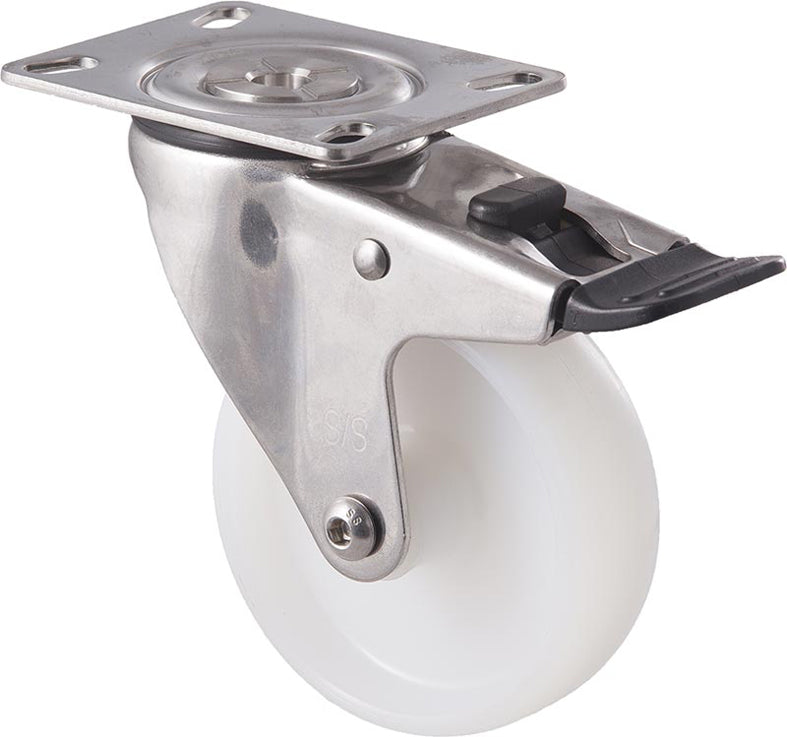

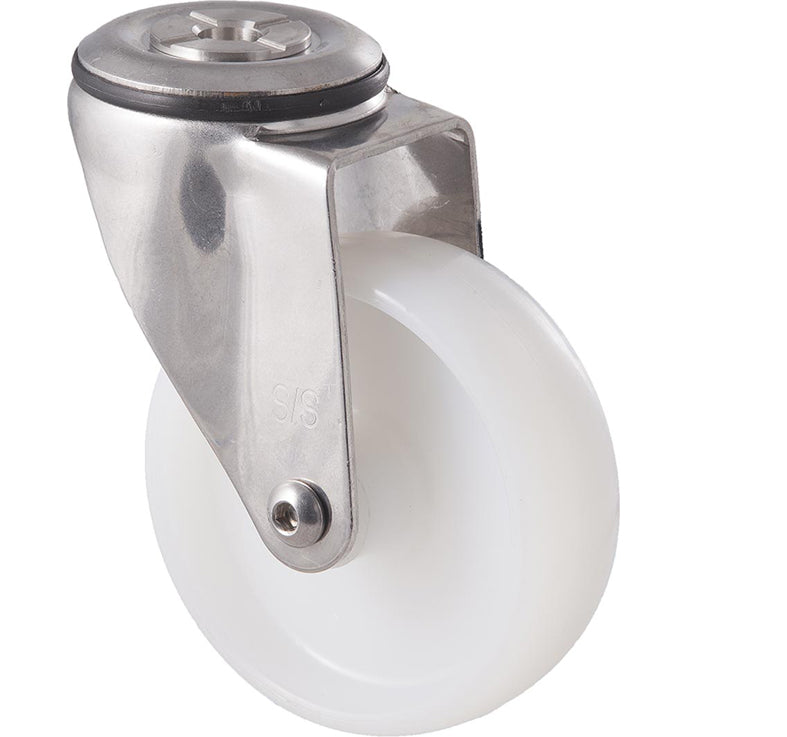

  • Flexible Mounting & Brake Options: Available in Swivel Plate, Fixed Plate, or Single M12 Bolt Hole mounting styles, with optional Total Brake mechanism to lock both wheel rotation and swivel direction simultaneously.
  • 3-Year Warranty: Covered by a 3-year manufacturer warranty for lasting reliability in commercial and industrial settings.

Product Specifications

Wheel Material Solid Nylon Wheel with 304 Stainless Steel Sleeve Centre
Wheel Diameter 100mm
Tread Width 32mm
Bore & Hub Width 8mm Bore x 40mm Hub Width
Overall Castor Height 135mm
Weight Rating 150kg per Castor (600kg 4-Wheel Rating)
Fork Material 304 Grade Stainless Steel (Double Ball Bearing Swivel Head)
Mounting Options Swivel Plate, Fixed Plate, or 12.7mm (M12) Bolt Hole
Plate Size & Hole Centres 96mm x 78mm Plate (Slotted Centres 60mm x 80mm using 8mm Bolts)
Swept Radius (Swivel) 91mm
Swept Radius (Total Brake) 128mm
Warranty 3-Year Warranty

100mm 304 Stainless Steel Castor Fork Mounting Dimensions Diagram
