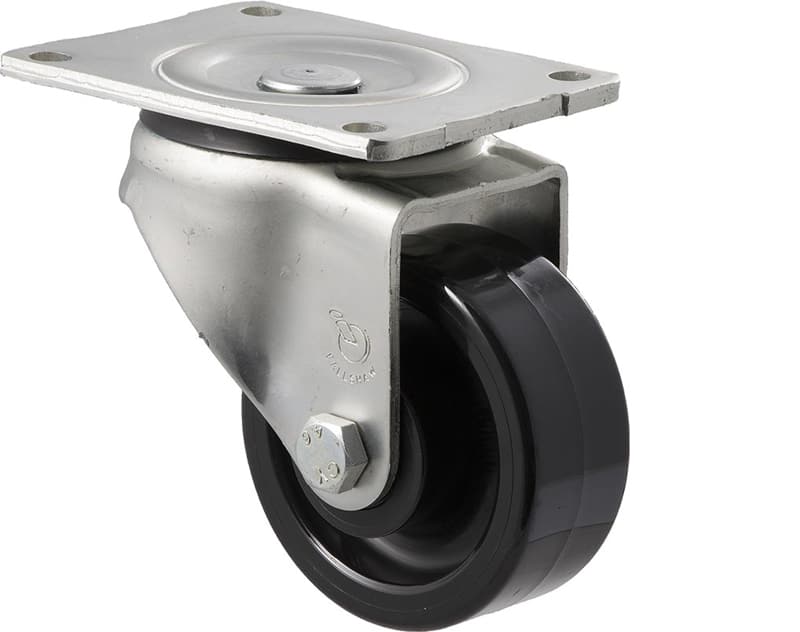

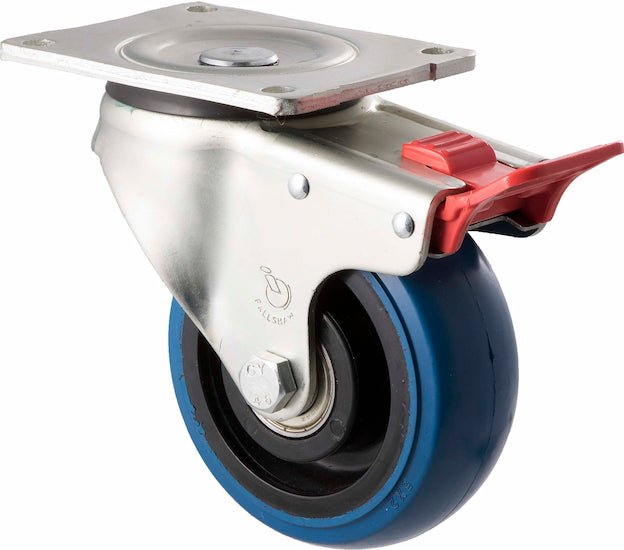

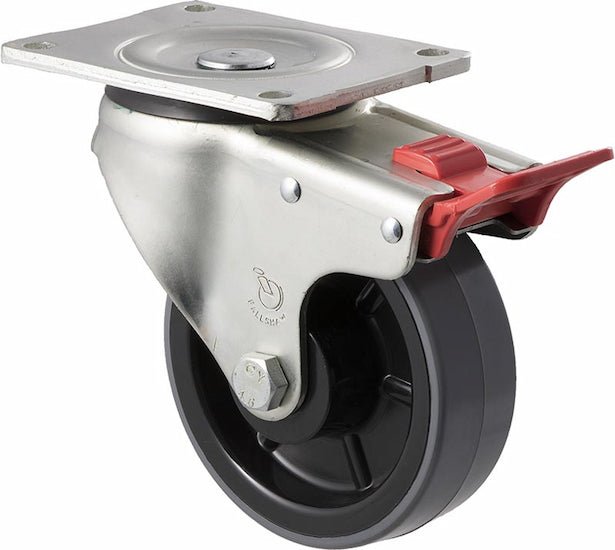

Heavy Industrial Duty castors available in blue high resilience elastomer (OBQ), hard nylon with roller bearing (ONR), polyurethane PU with roller bearing (HUR), hard nylon with precision bearing (WNQ) and polyurethane with precision bearing (WUQ). This range of castors can carry between 300kg - 600kg each. Sizes available include 100mm, 125mm, 150mm and 200mm wheel options. These forks consist of cold form steel plate for the main raceways, two full rows of balls are used and a rugged kingpin through the centre hold it all together. The legs are deeply formed for extra strength. Suitable for flat deck trolleys, heavier food carts or outdoor equipment. We have wheels available for use across all surface types. The forks are zinc plate finished and available in swivel plate, fixed plate and total brake configurations.
The zinc plated Core Coat forks give these a very nice appearance on chromed, stainless steel, aluminium and metal trolleys and ensures they have great rust resistance in normal non corrosive environment use. The Clear Coat lacquer provides the best quality corrosion protection, with no white or red rust after 150 hours of salt spray testing.
The larger the wheel, the smaller the obstacles are in proportion to the wheel - this means the bigger the wheel the greater the momentum so it's easier to push and gives better ride comfort (ability to pass over bumps and to minimise vibration). Castors are dynamically tested with obstacles 2.5% the height of the wheel diameter for hard wheels (100mm tested with 2.5mm obstacle height, 125mm tested with 3.125mm, 150mm tested with 3.75mm, 200mm tested with 5mm obstacle height) and 5% the height of the wheel diameter for soft wheels (100mm tested with 5mm obstacle height, 125mm tested with 6.25mm, 150mm tested with 7.5mm, 200mm tested with 10mm obstacle height).
The large surface area of the roller bearings available in all of the heavy duty industrial wheels make these best suited for higher impact applications that get used a lot but are not suitable for speeds over 6 km/h.

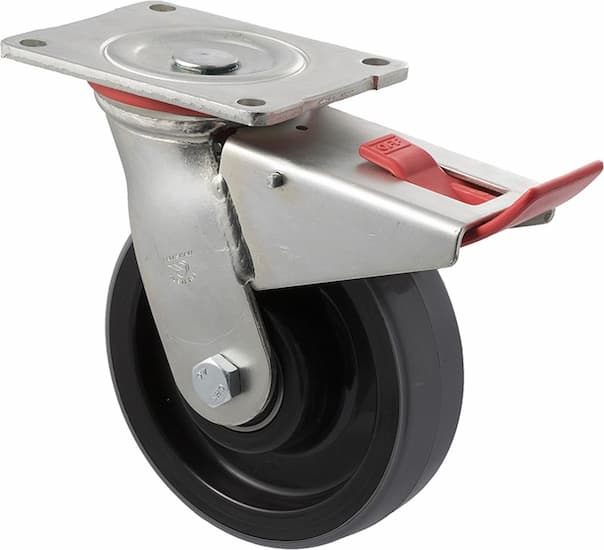

The total brake forks allows both wheel and the swivel to be locked to ensure the unit is stationary, when the step down lever is pushed down.
Fallshaw castors are widely regarded as premium quality castors manufactured in Australia and come with a 3 year warranty.
Click the castors below for more information and to purchase online for nationwide delivery.
