The most durable PU castor on the market. This wheel is our most widely used and versatile wheel and has been used in the NZ manufacturing, hospitality and logistic industries for over 30 years. The polyurethane used in these wheels is of high grade and mechanically keyed into the nylon centre. It will not embrittle or chip off which makes these more suited to environments where there will be heavier loads as well as varying rolling surfaces such as smooth concrete, rough concrete, tiles, lino vinyl or even carpet floor surfaces.
The Grey urethane is best for long life applications, one of the most durable materials but still light weight makes it suitable for applications where grease and chemicals are present.

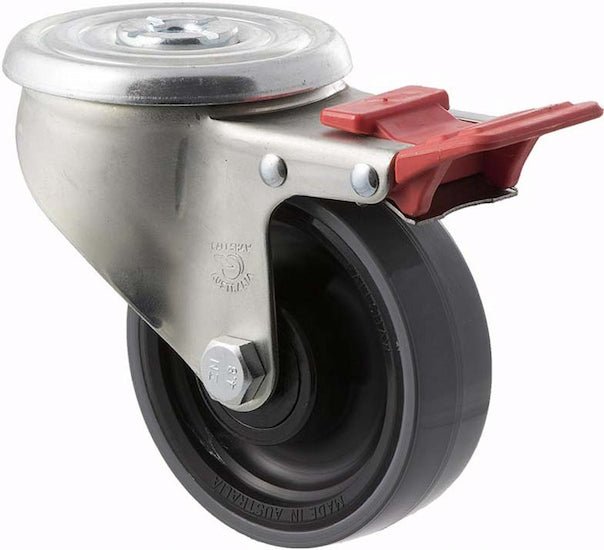

Our 100mm (4 inch) industrial urethane wheel castors are the best solution for equipment trolleys that take loads of up to 1,200kg and roll on rough surfaces. The roller bearing helps spread the load of impacts when going through doorways and over rough ground.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments. These feature two complete rows of balls in the headrace to ensure ease of smooth swiveling and silence during the life of the trolley.
Available in swivel and fixed plate mounting styles or 12.7mm bolt hole. You can also choose the total brake option on the swivel forks to stop the castors turning and rolling when braked.
The plate castors can be fastened by bolting the 86x100mm mounting plate using the four 9mm holes with slotted hole centres, but most commonly used at 60x80mm. The bolt hole castors can be mounted using a single M12 bolt through the centre of the mounting hole.
The swept radius of the swivel castors is 90mm and the swept radius for the total brake castors is 122mm. The total height from the floor to the top of these castor units is 129mm and each has a maximum rolling safety load rating of 300kg.
The Urethane wheels are 100mm diameter x 32mm tread width and have a 10mm bore x 45mm hub width and run on needle roller bearing in the centre of the wheel.
