125mm Nylon Industrial Castors - 300KG Rated

$49.99

Price GST incl. For bulk pricing please contact us.

Unit price per
  • 125mm Hard Nylon Industrial wheel castor with roller bearing
  • 300KG Rated
  • 155mm Mount height
  • 106mm Turning radius swivel plate and bolt hole
  • 122mm Turning radius swivel plate total brake and bolt hole total brake
  •

    Our 125mm (5 inch) Hard Nylon Industrial wheel castors are the best solution for equipment trolleys that take loads of up to 1,200kg and roll of smooth or sealed surfaces, including lino. Nylon makes for an economical wheel for hard but smooth surfaces. It does not mark concrete and has good resistance to most chemicals.

    The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments. These feature two complete rows of balls in the headrace to ensure ease of smooth swiveling and silence during the life of the trolley.

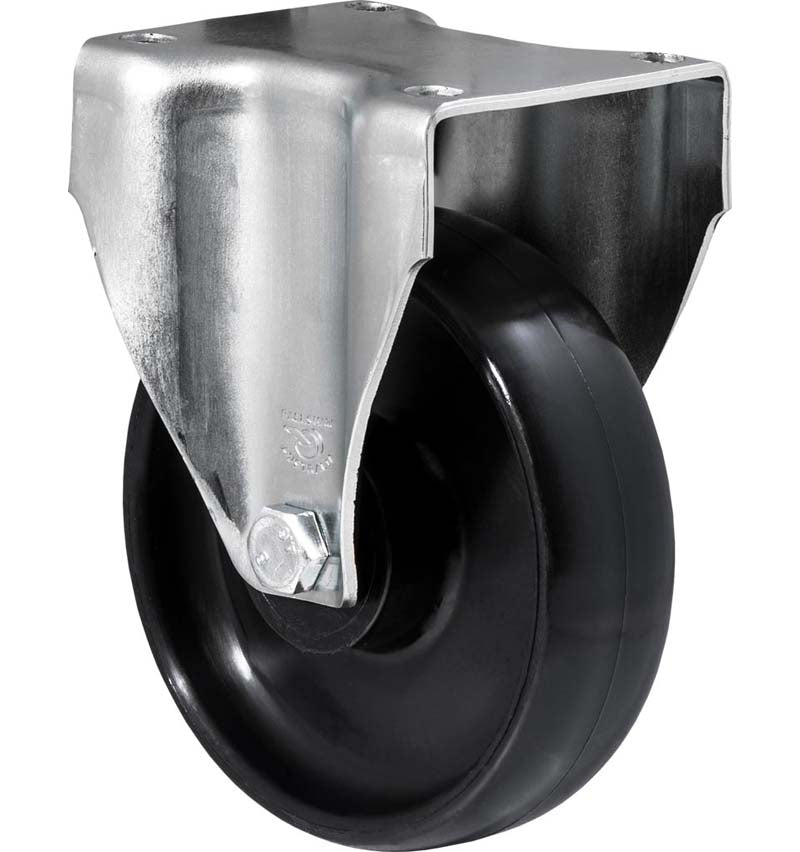

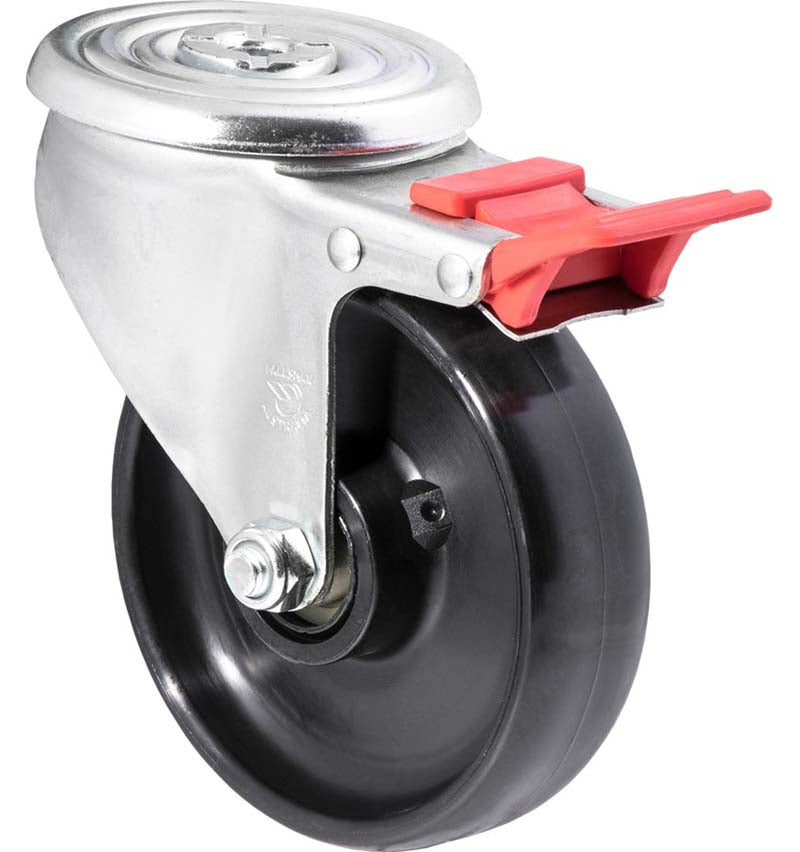

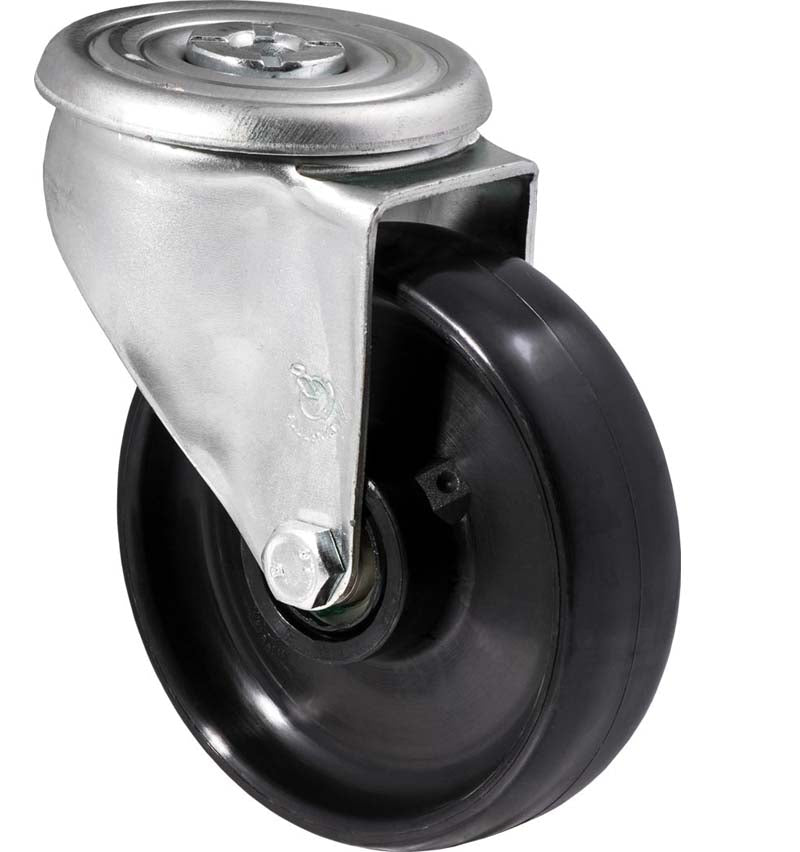

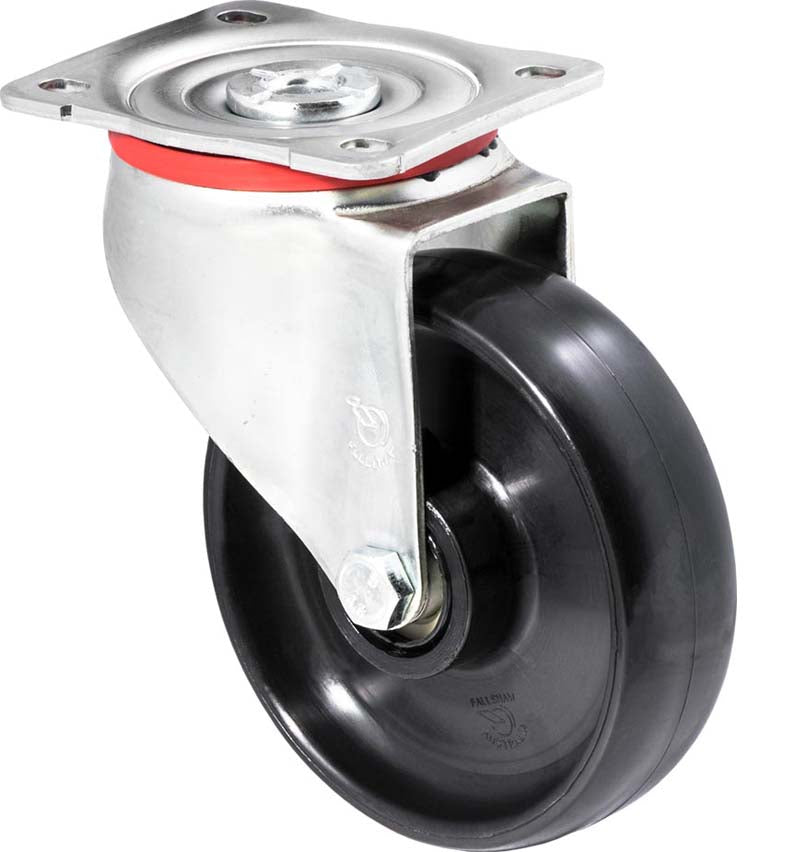

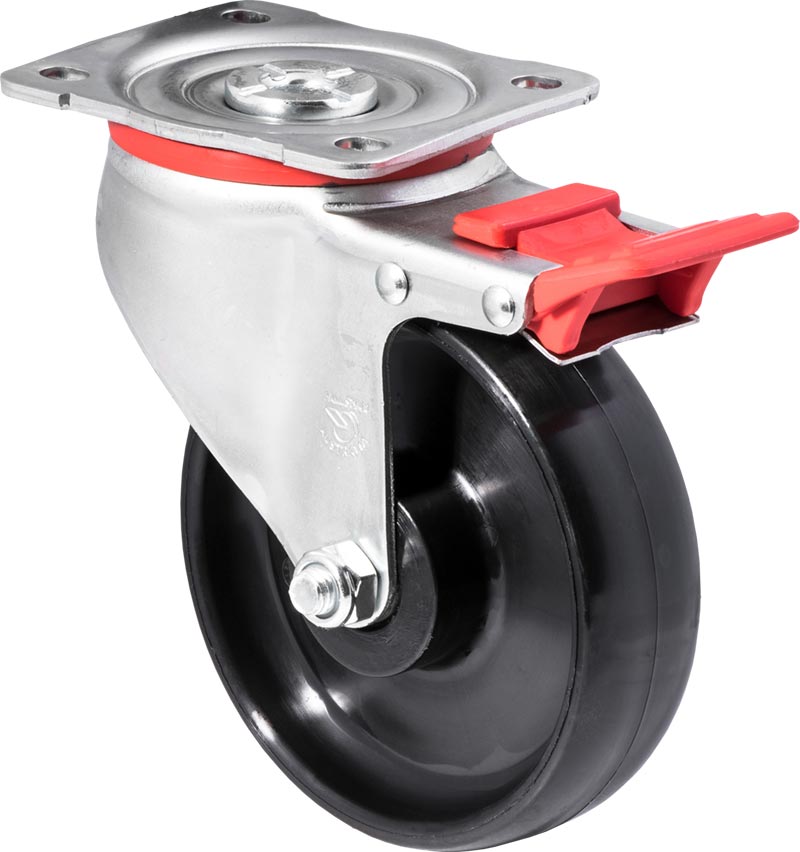

    Available in swivel and fixed plate mounting styles or 12.7mm bolt hole. You can also choose the total brake option on the swivel forks to stop the castors turning and rolling when braked.

    The plate castors can be fastened by bolting the 86x100mm mounting plate using the four 9mm holes with slotted hole centres, but most commonly used at 60x80mm. The bolt hole castors can be mounted using a single M12 bolt through the centre of the mounting hole.

    The turning radius of the swivel castors is 106mm and the turning radius for the total brake castors is 122mm. The total height from the floor to the top of these castor units is 155mm and each has a maximum rolling safety load rating of 300kg.

    The Hard Nylon Castor wheels are 125mm diameter x 35mm tread width and have a 10mm bore x 45mm hub width and run on needle roller bearing in the centre of the wheel.
