- Wheel Material: Keyed Polyurethane with roller bearing
- Wheel Diameter: 150mm
- Tread Width: 40mm
- Mount Height: 189mm
- Weight Rating: 450KG
- Turning radius swivel plate: 121mm
- Turning radius swivel plate total brake: 140mm

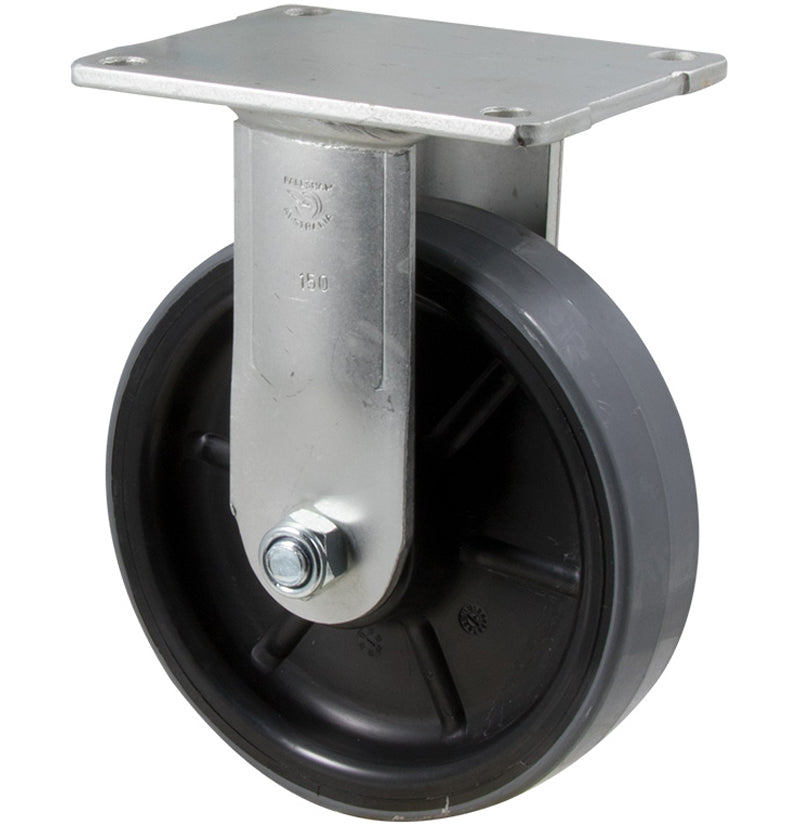

Our 150mm (6 inch) industrial duty polyurethane wheels have high grade PU mechanically keyed into the nylon centre. The PU will not embrittle or chip off which makes these more suited to environments where there could be heavier loads running on smooth concrete, tiles or lino vinyl floor surfaces.
The castor forks are zinc plate Core Coat finished with clear lacquer that provides best quality corrosion protection. Suitable for use on stainless steel, chrome, aluminium, metal or wooden furniture when used in non corrosive environments.
The plate castors can be fastened by bolting the 130x100mm mounting plate using the four 11mm holes with 80x105mm hole centres. The turning radius of the swivel castors is 96mm and the turning radius for the total brake castors is 140mm. The total height from the floor to the top of these castor units is 189mm and each has a maximum rolling safety load rating of 450kg.
The Polyurethane PU wheels are 150mm diameter x 40mm tread width and have a 12.7mm bore x 60mm hub width and run on rolling bearings in the centre of the wheel.
